KiS-3d Silicone heating mat 230x230mm 230V 500W
.png)
High-quality silicone heating mat 230x230mm 230V 500W
for e.g. S235, TwoTrees Sapphire S and Pro and Creality Ender 3 + 5

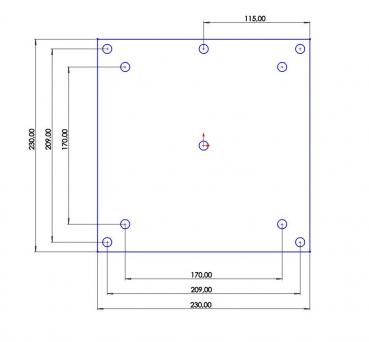

3 and 4 point levels possible
with temperature sensor NTC 100 / 3950
Hole for screw in temperature sensor
Cable length 150cm
temperature resistant adhesive foil 3M 467MP
incl. JST connector for the thermistor
Sensor type in Marlin :
30 : Kis3d Silicone heating mat 250W/300W with 6mm precision cast plate (EN AW 5083) NTC100K / B3950 (4.7k pullup)
matching this: solid state relay
Attention!
For the operation of a silicone heating mat, a corresponding control electronics designed for this purpose is necessary!
The legal regulations (VDE guidelines) must be followed in any case.
KiS3d does not assume any liability or warranty for damages to objects and persons caused by improper or unauthorized connection.
