KiS-3d magnetic precision casting plate 256x256mm for BambuLab printer P1P / P1S / X1 / X1C
KiS-3d magnetic precision casting plate 256x256mm for BambuLab printer P1P / P1S / X1 / X1C
*Version 100.BLAMG.V5
Simplest handling. No assembly required. The casting plate is simply placed on the already existing magnetic foil
Due to the integrated magnets, temperature resistant up to 150° / 302 °F, it adheres securely to the heating bed
The spring steel printing surface, whether PEI, PET or even the technical printing plate, is then placed on the magnetic cast plate
Step 1: perform the instrument calibration (incl. LIDAR for X1, X1C)
Step 2: remove the spring steel plate (Dual-Sided Textured PEI, High Temperature PEI, Cool Plate, Engineering)
Step 3: place the KiS-3d magnetic precision casting plate on the heating bed, making sure that it rests against the rear stops of the heating bed
Step 4: place the spring steel sheet on the casting plate, making sure that the spring steel sheet rests against the rear locating pins of the casting plate
Step 5: Done!
Note:
Some customer feedback indicated that sensor errors were occurring with some X1C sensors.
The following solution was found:
We have used a printed spacer disc of 2.3 mm (material PETG, ABS or ASA)
Remove the wheel nut, please leave the existing rubber ring! Use the spacer disc and screw on the knurled nut as far as it will go (hand-tight).
Switch on printer - place casting plate and PEI - start printing!
File spacer rings
The LIDAR © function can only be used without the magnetic casting plate. If a new filament is to be calibrated, the magnetic casting plate is simply removed and the calibration is performed as usual
Afterwards, the KiS-3d magnetic casting plate can be put back on and printing can be started.
When transferring the file, make sure that the dynamic flow calibration is deactivated!
By using the cast plate, the maximum print height is reduced by 5mm (256x256x251mm)

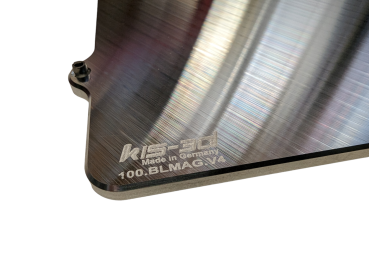

Precisely milled surface
Very good flatness
CNC machined
Made of EN AW 5083 [AlMg4,5Mn0,7] special grade
Finely milled, roughness Ra 0,3µm
with circumferential chamfer 0,6mm
The KiS-3d precision cast plate is characterized by extremely low residual stresses and excellent corrosion resistance.
In addition, it exhibits very good homogeneity.
Due to the cast structure and a special heat treatment, dimensional stability is optimally maintained even at high temperatures.
Surface roughness, thickness and flatness are subject to tight tolerances.
Controls at every stage of the production process ensure high quality.
25 embedded N42SH magnets, temperature resistant up to 150° / 302 °F with high holding force.
Magnets can impair the function of pacemakers and implanted defibrillators.
As a wearer of such devices device, make sure you keep a distance!
Warn wearers of such devices if necessary.
*History
100.BLMAG.V1 First tests with the magnetic casting plate on the BambuLab X1C.
100.BLMAG.V2 positioning pins added to allow correct placement of the casting plate.
100.BLMAG.V3 slight contour changes
100.BLMAG.V4 use of N42SH magnets in 15x4x4mm
100.BLMAG.V5 only 4 centering pins. Use of N42SH magnets in 15x3mm
** Technical modifications reserved **
BambuLab © is a registered trademark of BAMBULAB LIMITED ©
Scope of delivery:
1 x KiS-3d Magnetic Precision Casting Plate
matching permanent print plate structure dual here
This product was added to our catalog on Sunday, October 1, 2023.
