LDO 42STH40-1004ASC
LDO 42STH40-1004ASC

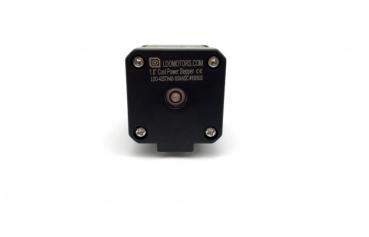

High quality stepper motor for x-axis, y-axis or for use in extruder.
1.8 degree step angle
Motor size: 42 x 42 x 40mm
Low noise and low operating temperature
Supplied with 600mm long connection cable

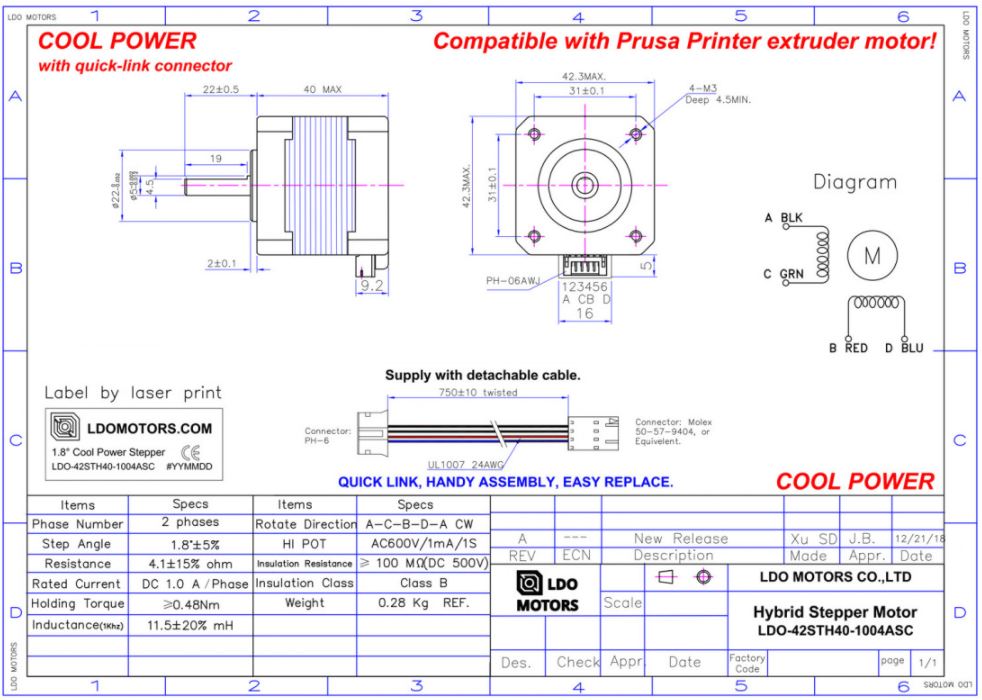

Size 42x42x40mm
Step angle 1.8 ± 5% °/ Step
Rated current 1A /phase
Torque 0.48 Nm
Number of leads 4
Shaft diameter 5.00 ± 0.010mm
weight 0,28kg
Cable included
