KiS-3d Heating bed set 235mm/500W

  Heating bed set 235mm/500W
The complete set for printers with a print area of 235mm -
e.g. S235, TwoTrees Sapphire S and Pro and Creality Ender 3, Ender S1 + 5
- contains everything you need for the conversion and saves you the search for the components.

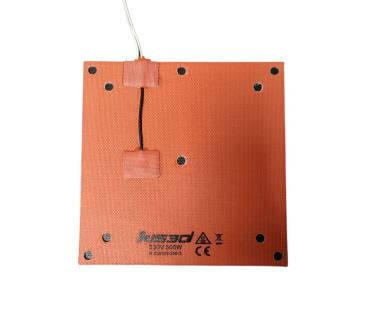

High quality silicone heating mat
230x230x3mm 230V 500W
3 and 4 point levels possible
with temperature sensor NTC 100 / 3950
Hole for screw-in temperature sensor
Cable length 150cm
temperature resistant adhesive foil 3M 467MP
incl. JST connector for thermistor

Sensor type in Marlin :
30 : Kis3d Silicone heating mat 250W/300W with 6mm precision cast plate (EN AW 5083) NTC100K / B3950 (4.7k pullup)
For the operation of a silicone heating mat, an appropriate control electronics designed for this purpose is necessary. It should always be operated in conjunction with a Mosfet.

DELIXI
Solid State Relay Single Phase CDG1-1DA/15A
With the 15A solid state relay, the heating mat can be controlled with mains voltage (24-230VAC) from your 3D printer mainboard.
This enables shorter heating times with higher performance.

Input: 3V~32V DC ( A1 and A2 polarity: A1 -> Positive; A2 -> Negative)
Output:24V~480V AC ( L1 and T1 - no polarity)
Power: 15A

Precision cast plate 235x235x6mm
made of EN AW 5083 [AlMg4,5Mn0,7 - 3.3547] aluminium
finest milled, roughness Ra 0,2-0,4 µm
with all-round chamfer 0.6mm
Very good flatness
Extremely low residual stresses
Very good corrosion resistance
Very good homogeneity
Precision milled surface

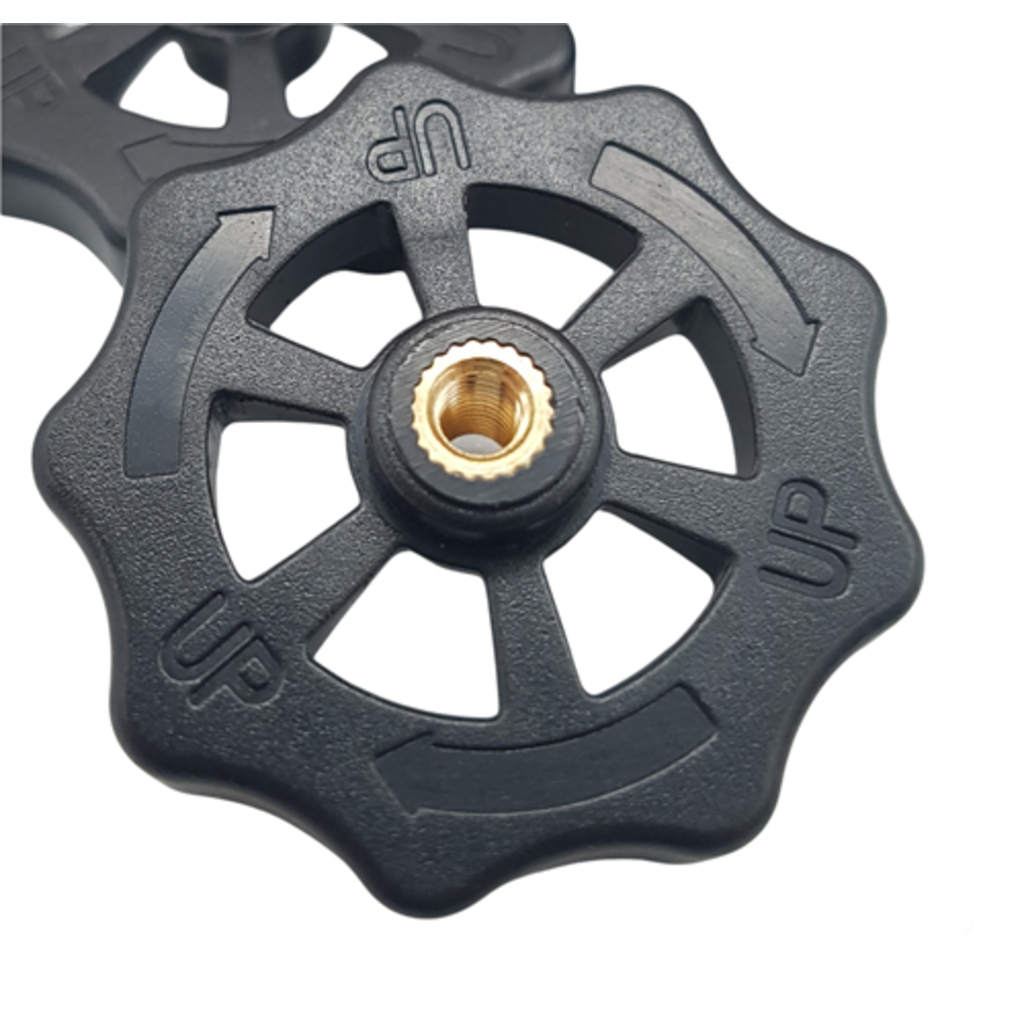

Knurled nut M3 / Large levelling nut
4 knurled nuts with fastening kit for levelling the heated bed -
easy to install and remove.
Their size makes fine adjustment much easier when levelling.
The arrows on the wheels indicate in which direction to turn to raise the print bed.
High quality, durable and robust.
Nut: M3
Screw: M3x30
Material: plastic
Diameter: 40 mm

Black silicone buffers / heating bed levelling pillars
as fixed spacers for the heating bed - simply installed instead of the springs and no more movement is possible.
The set level remains!
Made of high quality silicone material, heat resistant and non-stick coated.
Diameter: approx. 16mm
Height: approx. 22mm
Inner diameter: 4mm
Weight: 16g (4 pieces)

FR4 pressure plate 235x235mm or optional PEI Flex MagnetSystem smooth and structured

High quality bi-directional GRP plate made of E-glass filament fabric and epoxy resin matrix.
TOP surface and very precise
Thickness: 1 mm
Length: 235 ±1 mm
Width: 235 ±1 mm
Di >Weight: approx.175 g
Toxicity: free of halogen, antimony compounds, nitrogen compounds, sulphur and phosphorus
or
PEI-Flex System
consists of a spring steel plate with PEI structure coating already applied on one side and a smooth PEI foil coating
on the other side, and a magnetic plate with 3M adhesive.
The flexible PEI permanent printing plate forms the perfect basis for 3D prints.
The PEI Flex system is very durable and easy to use when handled correctly.

For fixing FR4 plates or glass we recommend
Stainless steel flat clamps
The clamps can be used to fix print beds with a maximum thickness of 8 mm.
Material: stainless steel
Clamp width: 10 mm
Clamping width: 8 mm
