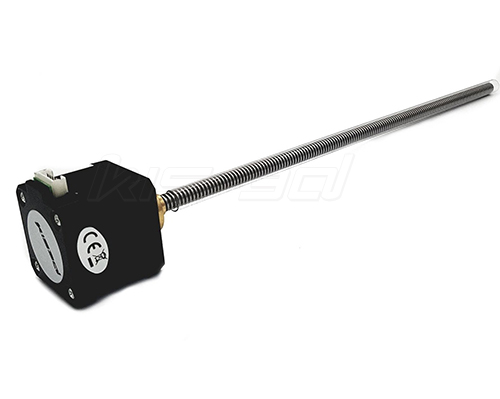

Nema17 1.8° 1.6A with TR8x2 spindle 310mm
Nema17 1.8° 1.6A with TR8x2 spindle 310mm
(Product No.: 17-TR8x2-305-SPS)
Nema17 1.8° 1.6A with TR8x2 spindle 310mm
wishlist Add to wish list

Nema17 1.8° 1.6A with TR8x2 spindle 310mm

Shipping time:
ca. 2-5 days ca. 2-5 days  (abroad may vary)
SOLD OUT
29,90 EUR

incl. 19% tax

PayPal ECS
Ask about product
Description
Nema17 1.8° 1.6A with TR8x2 spindle 310mm

step angle: 1.8°
Holding torque: 42Ncm
Current/phase: 1.6 A
Resistance/phase: 1.6 ohm
Size: 42 x 42 mm
length: 39 mm
spindle length: 310mm
Spindle type: T8 mm
spindle pitch: 2 mm
Weight: 390 g
incl. 1 piece TR8x2 nut made of brass, 1 piece TR8x2 nut made of Delrin

Customer reviews

Unfortunately there are no review yet. Be the first who rate this product.
