Kexcelled PLA Carbon Filament, vacuum packed
professional series

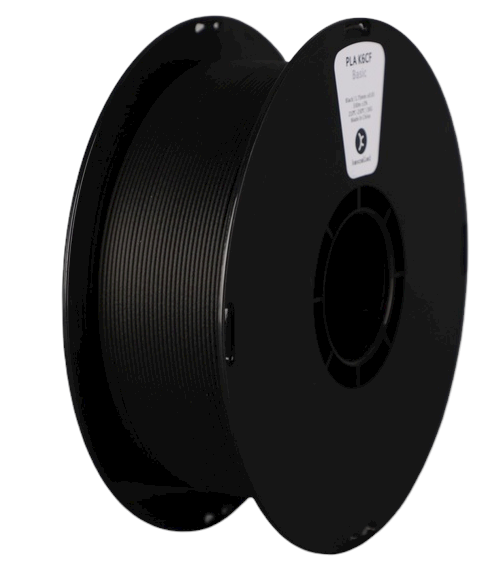

PLA Carbon Filament, vacuum packed
Quantity: 1000g
Empty weight spool: 300g
Diameter of spool: ca.20cm - Width: ca.7cm - Inner diameter hub: ca.5cm
Total: 1500g
Density in g/cm3: 1,22
Diameter: 1,75mm +/- 0,02mm
Roundness: +/-3
Carbon fibre 10%
Pressure temperature: 200-230 °C
Bed temperature: (optional) 40-65 °C
Good optical properties
High surface hardness
Flexural strength 112 MPa
Low flammability
High UV resistance
Dimensional stability is about 64 degrees
For direct drive and Bowden extruders
Recommended printing speed 30-100mm/
(depending on die temperature and film thickness)
To compensate for unevenness on the print bed, the first layer should be printed with a thickness of 0.3mm
Printing without a heated print bed is generally possible.
In case of larger print parts or not optimal adhesion on the print bed, temperatures around 60°C should be used. The first layer should be printed at 130% print width to improve adhesion.
PLA Carbon has a very low moisture absorption and is easy to store.
However, it is always advantageous to store the filament with the zip bag and silicate provided.
Important: To be able to print this CARBON - filament, a nozzle made of HARDENED STEEL is strongly recommended!
For more information, please visit the home page for this product.
